<% Title = "Bit-KVM 1700- Monitor Keyboard" Header = "bg-header-industrial.jpg" BreadCrumbStr = "100#1#38#133" BreadCrumbCount = 4 %> <% GetProductHTMLTop "topitem_Products", "dropMenu_Products", "dropMenu_Products_Rugged_Industrial_PCs", "", "", "Industrial_PC", "Bit_KVM_1700", "" GenerateBreadCrumb BreadCrumbStr, BreadCrumbCount GenerateProductFeatures "17"" TFT-LCD, 1280*1024#8 ports KVM switch#Industrial level Auto-switching power supply#Tempered glass protection to the LCD screen#Dual rails for panel and keyboard enables independent extraction of either panel or keyboard alone.#Backlight MTBF 50,000 hours under 25±°#442.4mm(W) x 44.5mm(H) x 490mm(D)", "", Title, "dropMenu_Products", "dropMenu_Products_Rugged_Industrial_PCs", "Industrial_PC", "Bit_KVM_1700" GenerateContentHeadline "Bit-KVM 1700- Monitor Keyboard", "" GeneratePictureSlider2 "kvm-1700/bit_kvm_1700 M&K.png#kvm-1700/01.jpg#kvm-1700/02.jpg#kvm-1700/03.jpg#kvm-1700/04.jpg", "" GenerateProductMenu("") OpenProductInformationbox() GenerateOverviewText "

The integration of data and video, and voice communication in computers and the subsequent technological advances have spawn many sophisticated CTI applications that have become accessible and affordable to the small and mid-sized business. The increasing CTI applications coupled with the growing demand for corresponding hardware and systems have created a dilemma: How does one pack the growing number of equipment into existing space?

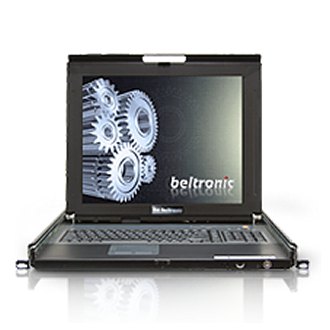

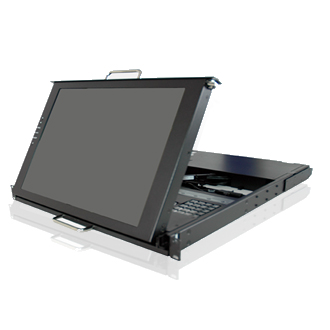

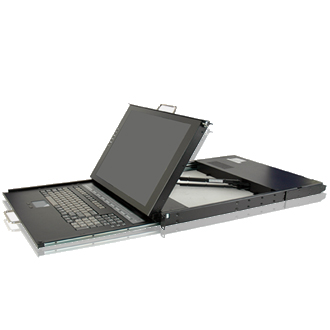

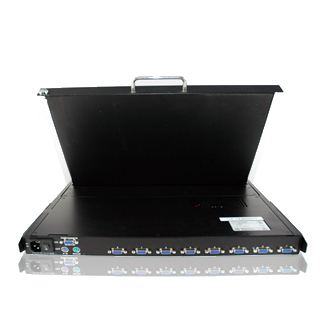

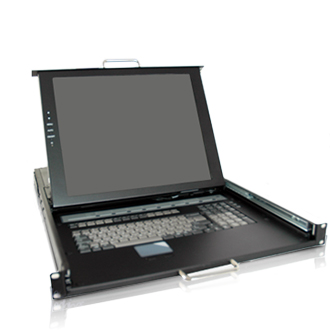

Bit-KVM 1700- industrial Monitor Keyboard is the solution for compact-ing more computing power into limited space. This revolutionary monitor keyboard combines a spectacular display coupled with a keyboard with built-in pointing device in a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation of the DMK leaves ample space for other critical components. With built-in analog-to-digital conversion board, the DMK can be connected to any standard VGA graphics card for immediate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19"" rackmount cabinet.

", "", "" GenerateSpecificationText "Model No.#Size#Construction#Keyboard#Mouse#Dimension#Weight#Power Supply#Protection#Auto Power Switch#Operating Temp#Folding Angle#Extension Length#Drawer Design#KVM Interface#LCD#Certification#Ports#

Display

#Diagonal#Resolution#Display Area#Contrast Ratio#Brightness#Viewing Angle#Frequency#Color#Control System#LCD Cell Life Time", "DMK-980#1U 19"" Rackmount type# Heavy duty steel#105 key, notebook type
Multi-language: US, RU, GR, FR, UK, IT, KR, CH# Touchpad# 17.417"" x 1.736"" x 23.2""
442.4mm x 44mm x 590mm# 13.5kg (30 lbs)# Industrial level AC 100/240V Auto Switching# Tempered glass protection to the LCD screen#LCD back-light will be turned off when the screen is turned down# 0-50°C (32-122°F)# Up to 110°# 431.8mm (17"")# Dual rails for panel and keyboard enables independent extraction of either panel or keyboard alone# VGA DB 15pin, PS/2 Keyboard mini Din 6 pinPS/2 Mouse mini Din 6 pin# 17"" TFT LCD, 1280*1024, with 300 nits brightness,160/160 viewing angle, contrast ratio 450:1# CE, FCC# 8 ports KVM Switch. Daisy chain level up to 8 levels. PC connection up to 128 sets.# #17"" TFT LCD#1280 x 1024#337.9mm x 270.3mm#450:1#300 nits#160/160#60Hz#16.2M colors#Auto adjustment, brightness, contrast, H-V position, frequency, size, and display mode#Lcell, Min. 50,000 Hrs. , MTBF based", "" GenerateOptionalAccessoires "kvm-1700/optional_accessoires/cable_3_3_ps2_m.jpg", "DB Cascade Cable for PS/2 KVM Cable" GenerateVideos "", "" CloseProductInformationbox() GetHTMLButton() %>
